specifications:

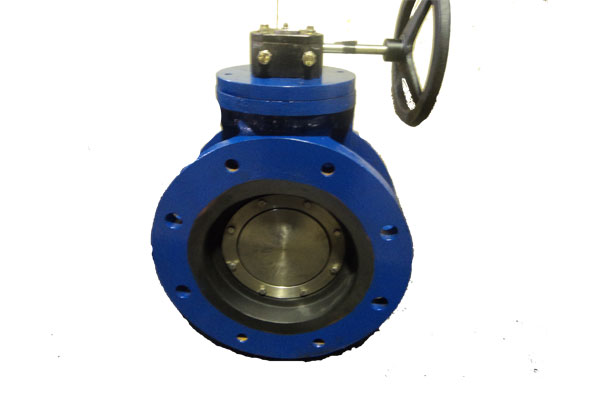

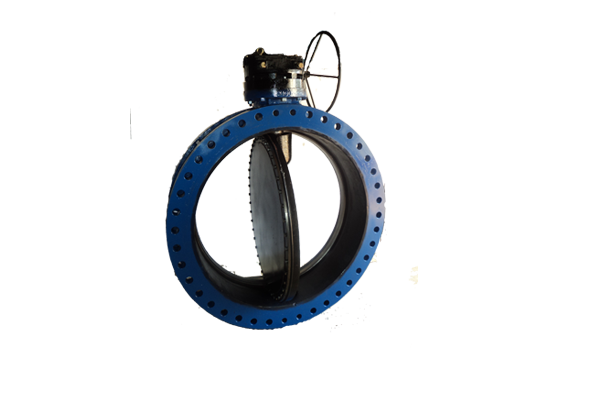

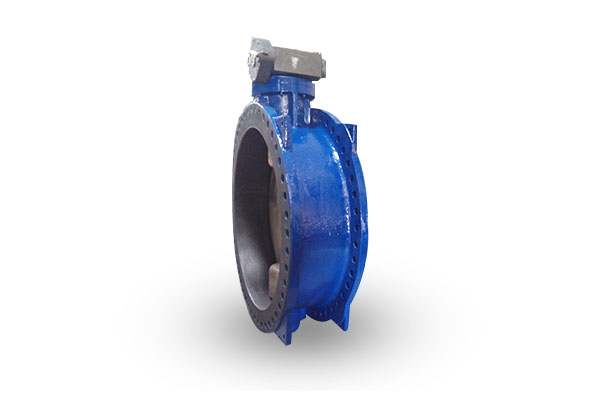

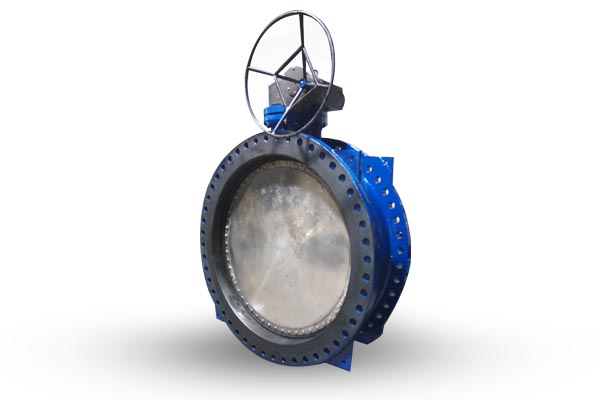

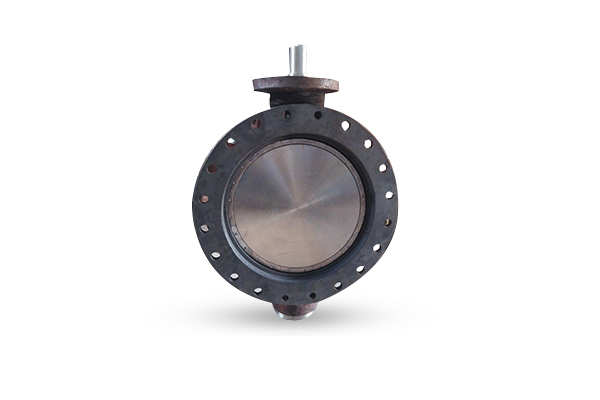

Type | Resilient Replaceable Seat Butterfly Valve |
Series | 60, Double Offset Body |
Size Range | 2” (50NB) TO 56” (1400NB) |
Body | Cast Iron / Ductile Iron / WCB / SS / Special |
Disc | CF8 / CF8M / CF3 / CF3M / Duplex Steel / Aluminium Bronze / WCB / Ductile Iron(Nylon/Aroxy coated) / Special |
Seat | Buna N / EPDM / Viton / Silicon |
Stem | SS431 / SS316 / SS304 / SS410 / EN 8 |
Mode of Operation | Lever / Gear / Pneumatic / Electrical Actuator |
Temperature | (-) 40~C to (+) 200~C |
Pressure Rating | PN 3.5 / PN 10 / PN 16 |
